Go Net Rpc Study

This article I will introduce the net/rpc in go standard library.This is a very tiny and powerful feature and deserves to study.

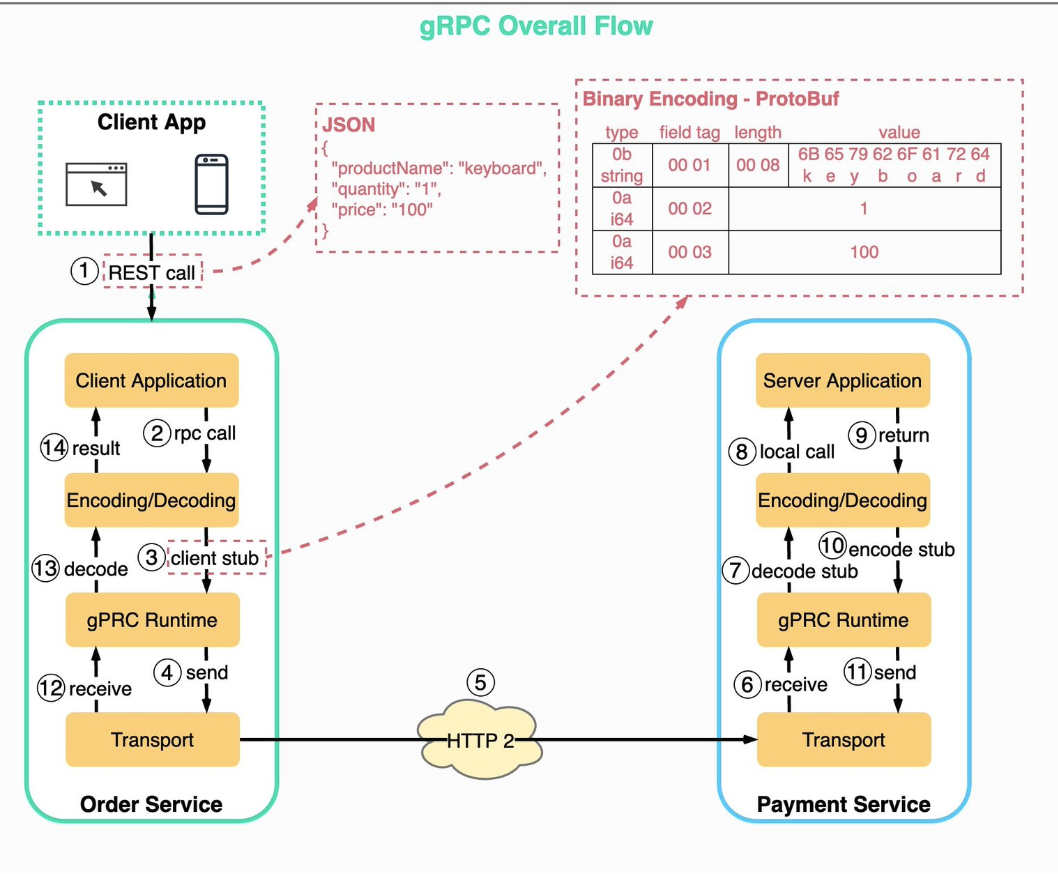

Typical RPC Architecture and Features

protocol

1. transport protocol
   • tcp
   • http
   • …
2. data protocol
   • encoding
     • json
     • xml
     • protobuf
     • …
   • payload schema
3. api definition
   • pb file
   • rules established by implementer
   • …

server feature

1. registration
   • service registration
2. listen and accept client connection
3. handle client request in loop
   • decode request
   • call service method
   • encode response
4. concurrently and sync/async

   client feature

5. call remote service
   • encode request
   • send request
   • decode response
6. handle server response in loop
   • decode response
   • call callback
7. concurrently and sync/async

RPC in go

Transport Protocol

• customer defined

    // Accept accepts connections on the listener and serves requests
    // to [DefaultServer] for each incoming connection.
    // Accept blocks; the caller typically invokes it in a go statement.
    func Accept(lis net.Listener) { DefaultServer.Accept(lis) }

    // A Listener is a generic network listener for stream-oriented protocols.

    //
    // Multiple goroutines may invoke methods on a Listener simultaneously.
    type Listener interface {
        // Accept waits for and returns the next connection to the listener.
        Accept() (Conn, error)

        // Close closes the listener.
        // Any blocked Accept operations will be unblocked and return errors.
        Close() error

        // Addr returns the listener's network address.
        Addr() Addr
    }


  So any connection that implements the net.Listener interface can be used as a transport protocol.

  http

    arith := new(Arith)
    rpc.Register(arith)
    rpc.HandleHTTP()
    l, e := net.Listen("tcp", ":1234")
    if e != nil {
        log.Fatal("listen error:", e)
    }
    go http.Serve(l, nil)

    //client
    client, err := rpc.DialHTTP("tcp", serverAddress + ":1234")
    if err != nil {
        log.Fatal("dialing:", err)
    }


  tcp

    arith := new(Arith)
    rpc.Register(arith)
    l, err := net.Listen("tcp", "127.0.0.1:0")
    if err != nil {
        log.Fatal("listen error:", err)
    }
    for {
        conn, err := l.Accept()
        if err != nil {
            log.Fatal("accept error:", err)
        }
        go rpc.ServeConn(conn)
    }


Data Protocol

1. encoding
   • gob(NewClient)
   • customer defined(NewClientWithCodec)

   client

    // A ClientCodec implements writing of RPC requests and
    // reading of RPC responses for the client side of an RPC session.
    // The client calls [ClientCodec.WriteRequest] to write a request to the connection
    // and calls [ClientCodec.ReadResponseHeader] and [ClientCodec.ReadResponseBody] in pairs
    // to read responses. The client calls [ClientCodec.Close] when finished with the
    // connection. ReadResponseBody may be called with a nil
    // argument to force the body of the response to be read and then
    // discarded.
    // See [NewClient]'s comment for information about concurrent access.
    type ClientCodec interface {
        WriteRequest(*Request, any) error
        ReadResponseHeader(*Response) error
        ReadResponseBody(any) error

        Close() error
    }

    // NewClient returns a new [Client] to handle requests to the
    // set of services at the other end of the connection.
    // It adds a buffer to the write side of the connection so
    // the header and payload are sent as a unit.
    //
    // The read and write halves of the connection are serialized independently,
    // so no interlocking is required. However each half may be accessed
    // concurrently so the implementation of conn should protect against
    // concurrent reads or concurrent writes.
    func NewClient(conn io.ReadWriteCloser) *Client {
        encBuf := bufio.NewWriter(conn)
        client := &gobClientCodec{conn, gob.NewDecoder(conn), gob.NewEncoder(encBuf), encBuf}
        return NewClientWithCodec(client)
    }

    // NewClientWithCodec is like [NewClient] but uses the specified
    // codec to encode requests and decode responses.
    func NewClientWithCodec(codec ClientCodec) *Client {
        client := &Client{
            codec:   codec,
            pending: make(map[uint64]*Call),
        }
        go client.input()
        return client
    }


   server

    // A ServerCodec implements reading of RPC requests and writing of
    // RPC responses for the server side of an RPC session.
    // The server calls [ServerCodec.ReadRequestHeader] and [ServerCodec.ReadRequestBody] in pairs
    // to read requests from the connection, and it calls [ServerCodec.WriteResponse] to
    // write a response back. The server calls [ServerCodec.Close] when finished with the
    // connection. ReadRequestBody may be called with a nil
    // argument to force the body of the request to be read and discarded.
    // See [NewClient]'s comment for information about concurrent access.
    type ServerCodec interface {
        ReadRequestHeader(*Request) error
        ReadRequestBody(any) error
        WriteResponse(*Response, any) error

        // Close can be called multiple times and must be idempotent.
        Close() error
    }

    // ServeConn runs the [DefaultServer] on a single connection.
    // ServeConn blocks, serving the connection until the client hangs up.
    // The caller typically invokes ServeConn in a go statement.
    // ServeConn uses the gob wire format (see package gob) on the
    // connection. To use an alternate codec, use [ServeCodec].
    // See [NewClient]'s comment for information about concurrent access.
    func ServeConn(conn io.ReadWriteCloser) {
        DefaultServer.ServeConn(conn)
    }

    // ServeCodec is like [ServeConn] but uses the specified codec to
    // decode requests and encode responses.
    func ServeCodec(codec ServerCodec) {
        DefaultServer.ServeCodec(codec)
    }


   So any codec that implements the ServerCodec interface can be used as codec in server side.If client use gob as data protocol, you can use ServeConn(conn io.ReadWriteCloser),this method will use gob as the data protocol. If client use a specified codec as data protocol, you can use ServeCodec(codec ServerCodec),this method will use the specified codec as the data protocol.And jsonrpc is a built-in codec in go, you can use rpc.ServeCodec(jsonrpc.NewServerCodec(conn)) to use it. Codec has a 2 responsibilities:

   • encode to memory.It contains construct the messge data.
   • decode from memory.It contains idetidy the boundary of message.
2. payload schema Typically, the data schema is as follows:
   • request

      +-------------------+
      | Request Header    |  <-- ServiceMethod and Seq
      +-------------------+
      | Serialized Args   |  <-- Serialized business data (call arguments)
      +-------------------+


   • response

      +-------------------+
      | Response Header   |  <--  ServiceMethod、Seq
      +-------------------+
      | Serialized Reply  |  <-- Serialized business data (return values)
      +-------------------+


    // Request is a header written before every RPC call. It is used internally
    // but documented here as an aid to debugging, such as when analyzing
    // network traffic.
    type Request struct {
        ServiceMethod string   // format: "Service.Method"
        Seq           uint64   // sequence number chosen by client
        next          *Request // for free list in Server
    }

    // Response is a header written before every RPC return. It is used internally
    // but documented here as an aid to debugging, such as when analyzing
    // network traffic.
    type Response struct {
        ServiceMethod string    // echoes that of the Request
        Seq           uint64    // echoes that of the request
        Error         string    // error, if any.
        next          *Response // for free list in Server
    }

    func (c *gobClientCodec) WriteRequest(r *Request, body any) (err error) {
        if err = c.enc.Encode(r); err != nil {
            return
        }
        if err = c.enc.Encode(body); err != nil {
            return
        }
        return c.encBuf.Flush()
    }


   Actually,the data shcema rely on the codec you use.

Api Definition

Only methods that satisfy these criteria will be made available for remote access

• the method’s type is exported.
• the method is exported.
• the method has two arguments, both exported (or builtin) types.
• the method’s second argument is a pointer.

• the method has return type error.

  In effect, the method must look schematically like

  func (t *T) MethodName(argType T1, replyType *T2) error


concurrently and sync/async

client side call

• sync

    // Call invokes the named function, waits for it to complete, and returns its error status.
    func (client *Client) Call(serviceMethod string, args any, reply any) error {
        call := <-client.Go(serviceMethod, args, reply, make(chan *Call, 1)).Done
        return call.Error
    }


• async

    // Go invokes the function asynchronously. It returns the [Call] structure representing
    // the invocation. The done channel will signal when the call is complete by returning
    // the same Call object. If done is nil, Go will allocate a new channel.
    // If non-nil, done must be buffered or Go will deliberately crash.
    func (client *Client) Go(serviceMethod string, args any, reply any, done chan *Call) *Call {
        call := new(Call)
        call.ServiceMethod = serviceMethod
        call.Args = args
        call.Reply = reply
        if done == nil {
            done = make(chan *Call, 10) // buffered.
        } else {
            // If caller passes done != nil, it must arrange that
            // done has enough buffer for the number of simultaneous
            // RPCs that will be using that channel. If the channel
            // is totally unbuffered, it's best not to run at all.
            if cap(done) == 0 {
                log.Panic("rpc: done channel is unbuffered")
            }
        }
        call.Done = done
        client.send(call)
        return call
    }


    // NewClientWithCodec is like [NewClient] but uses the specified
    // codec to encode requests and decode responses.
    func NewClientWithCodec(codec ClientCodec) *Client {
        client := &Client{
            codec:   codec,
            pending: make(map[uint64]*Call),
        }
        go client.input()
        return client
    }

    func (client *Client) input() {
    var err error
    var response Response
    for err == nil {
        response = Response{}
        err = client.codec.ReadResponseHeader(&response)
        if err != nil {
            break
        }
        seq := response.Seq
        client.mutex.Lock()
        call := client.pending[seq]
        delete(client.pending, seq)
        client.mutex.Unlock()


  Client hold a pending map to store not finished call.Another goroutine will read the response from server and put it into the pending map.

server side

    type Server struct {
        serviceMap sync.Map   // map[string]*service
        reqLock    sync.Mutex // protects freeReq
        freeReq    *Request
        respLock   sync.Mutex // protects freeResp
        freeResp   *Response
    }
    ```
Using `freeReq` and `freeResp` to reuse the memory to reduce the memory allocation.

```go
func (server *Server) Accept(lis net.Listener) {
    for {
        conn, err := lis.Accept()
        if err != nil {
            log.Print("rpc.Serve: accept:", err.Error())
            return
        }
        go server.ServeConn(conn)
    }
}
func (server *Server) ServeCodec(codec ServerCodec) {
    sending := new(sync.Mutex)
    wg := new(sync.WaitGroup)
    for {
        service, mtype, req, argv, replyv, keepReading, err := server.readRequest(codec)
        if err != nil {
            if debugLog && err != io.EOF {
                log.Println("rpc:", err)
            }
            if !keepReading {
                break
            }
            // send a response if we actually managed to read a header.
            if req != nil {
                server.sendResponse(sending, req, invalidRequest, codec, err.Error())
                server.freeRequest(req)
            }
            continue
        }
        wg.Add(1)
        go service.call(server, sending, wg, mtype, req, argv, replyv, codec)
    }
    // We've seen that there are no more requests.
    // Wait for responses to be sent before closing codec.
    wg.Wait()
    codec.Close()
}

• Using goroutine to handle clients connections.
• Using goroutine to handle client requests continually from a client connection.

reflect

The sever using reflect to registrate the service and method.And using reflect to call the method.

    type service struct {
        name   string                 // name of service
        rcvr   reflect.Value          // receiver of methods for the service
        typ    reflect.Type           // type of the receiver
        method map[string]*methodType // registered methods
    }

    type methodType struct {
        sync.Mutex // protects counters
        method     reflect.Method
        ArgType    reflect.Type
        ReplyType  reflect.Type
        numCalls   uint
    }

    func (s *service) call(server *Server, sending *sync.Mutex, wg *sync.WaitGroup, mtype *methodType, req *Request, argv, replyv reflect.Value, codec ServerCodec) {
        if wg != nil {
            defer wg.Done()
        }
        mtype.Lock()
        mtype.numCalls++
        mtype.Unlock()
        function := mtype.method.Func
        // Invoke the method, providing a new value for the reply.
        returnValues := function.Call([]reflect.Value{s.rcvr, argv, replyv})
        // The return value for the method is an error.
        errInter := returnValues[0].Interface()
        errmsg := ""
        if errInter != nil {
            errmsg = errInter.(error).Error()
        }
        server.sendResponse(sending, req, replyv.Interface(), codec, errmsg)
        server.freeRequest(req)
    }

Reference

https://darjun.github.io/2020/05/08/godailylib/rpc/
